BTO-22
Core wire :2.5±0.05mm
Blade :0.5±0.05mm
Mesh :150x75 mm
Panel Size :955×2500mm
Hot dipped GI : 275gsm (min.)
Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together,packaging into a roll form for transport. Welded Razor Wire Mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers.
This welded razor wire mesh security fence product is almost impossible to climb or cut off with the standard tools,also it has a neat appearance.
The benefits of welded razor wire mesh :
It is almost impossible to climb.
High-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Extremely simple to install, needs three to four to install molding.
Welded razor wire mesh (or Welded razor fence or Diamond razor mesh)
is a straight razor barbed wire , welded mesh processed,which can be welded into a diamond, rectangular hole (aperture can be produced according to customers’ requirements),nice,and the card cannot climb down, blocking strong deterrent force strong. It can be integrated with other fence and can also be used alone.
This kind of razor wire is extremely easy to install, Features of welded razor wire mesh:
1. Non-climbing;
2. Robust welded structure;
3. Zinc coating improve corrosive resistance;
4. Available in square and diamond profile.
This Welded Razor Wire Mesh security fence product is almost impossible to climb or cut off with the standard tools,
also it has a neat appearance.
Welded razor wire mesh Hole Type:
1. Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm.
2. Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.
| Gauge diameter | Hole shape | Mesh width | Suited blade specifications |
| 100mm×100mm | Square hole,diamond | 1.2m ~ 2.4m | BTO-10.12.18.22.28.30, CBT-60.65 |
| 100mm×150mm | Square hole,diamond | 1.2m ~ 2.4m | BTO-10.12.18.22.28.30, CBT-60.65 |
| 100mm×200mm | Square hole,diamond | 1.2m ~ 2.4m | BTO-10.12.18.22.28.30, CBT-60.65 |
| 150mm×300mm | Square hole,diamond | 1.2m ~ 2.4m | BTO-10.12.18.22.28.30, CBT-60.65 |
| (other nets hole can according to customers' special needs) |
There are standard specifications of welded razor wire fence.
Razor type: CBT-60, BTO-22, BTO-30.
Hole: Diamond,square,rectangle; such as diamond hole 15x30 cm ; 7.5x15 cm; square hole 20x20 cm; rectangle hole 15x30 cm
Height: 0.5 - 2.4 m
Length: 1-50 m
Raw material: High quality stainless steel wire and sheet, and high quality low carbon steel wire and sheet.
Core wire: 2.5 mm.
Sheet thickness: 0.5 mm.
Custom specifications are available at your specific requirement.
| SPECIFICATIONS | DESCRIPTIONS |
| (A) Razor Weld mesh panel | The Razor Weld Mesh panel would be made with Medium Blade Profile Razor Tape |
| Core Wire | Horizontal wire, Dia 2.5mm (+/- 0.05mm) ; min 0.5mm (+/-0.05) thick tape |
| Razor Tape | min 0.5mm (+/-0.05) thick tape |
| Mesh Size | Mesh Size of 75 X 150mm with mesh opening pf diamond/rhombus shape |
| Panel size | 2500 x 955mm |
| Metallic Coating | Core wire : 2.5 (+/-0.05)mm Hot dipped GI (min 275 gsm); Razor Strip sheet: 0.5 (+/-0.05)mm Hot dipped GI (min 275 gsm) |
| Note | Three panels to be used to get a vertical height of 2700mm |
| (B) Concertina coil | 1050 mm Dia / 56 turns/ 2.5 mm core wire. |
| Coil Diameter | 1050 mm |
| Type of Strip | Hot Dipped GI (min 275 gsm) |
| Type of Core wire | Hot Dipped GI (min 275 gsm) |
| Core wire Diameter | Min 2.5 mm |
| Material | Hot Dipped GI (min 275 gsm) |
| Weight | 15.2 ± 5% |
| Number of turns | 56. |
| Length when stretched | 10-12 m |
| Blade profile | Tear Blade |
| (C) Fence Post |
| Type | Circular Hollow |
| Material | MS steel Tube (IS 1161). |
| Dimensions | 76mm Dia, 3.2 mm ( +/- 10%) Thickness. |
| Length | 3345mm (+/- 5%) (2745 mm above ground level + 600 mm under the ground level). |
| Powder Coating | Hot Dip galvanized to minimum 350 GSM as per IS 2629/ IS 4759/ASTM A 123 |
| Holes | Suitable holes of proper size to match the mounting of the clamps to be provided |
| (D) Clamps | To tighten the mesh panel along the post with GI strip 50 x 5 x 2700mm with 9 holes will be provided.Along with the clamp 9no of Mushroom Head Bolt (M8X120) with breakable head safety nut and washer (Material: SS 304, OD : 15.89mm, ID : 8.38mm, thickness ; 2.04mm.) will be provided. |
| Coating | Hot dip galvanized |
| (E) | Y-Arm | |
| Material | MS Angle Size: 50x50x5 mm. |
| Length | 750 mm of one arm. |
| Coating | Hot dip galvanized to 350 GSM Hot Dip Galvanizing as per IS 2629 / IS 4759 /ASTM A 123 |
| Outer diameter | 63 mm of sleeve cap, Bolted on the top of the fence post. Straining post will be installed at every 30 meters. |
| Accessories for fitting Y Arm | Mushroom Head Bolt with breakable head safety nut (M8X120) (2 Nos per post) |
| Material | MS, IS 2062, galvanized |
| (F) Razor Blade Tape |
| Material | Hot Dipped GI (min 275 gsm) |
| Core wire Diameter | 2.6 ± 0.035 mm Dia. |
| Blade profile | MBBT |
| (G) | Anchor Rod | 10 mm dia 300 mm long GI Rod tie with fence post at bottom using tie wire. (01 nos for each post) |
| Sl.no | RAZOR WELD MESH | UOM | QTY |
| 1 | Razor Weld Mesh Panel with Accessories | NOS | 3 |
| 2 | clamps | NOS | AS REQUIRED |
| 3 | Mushroom Head Bolt Nut with Washer For fitting Razor panels | NOS | AS REQUIRED |
| 4 | Fence Post | NOS | AS REQUIRED |
| 5 | Y- Arm | NOS | 1 PER POST |
| 6 | Accessories for fitting Y Arm: Mushroom Head Bolt with breakable head | NOS | AS REQUIRED |
| 9 | Punched Tape Concertina Coil | COIL | AS REQUIRED |
| 10 | Razor Blade Tape | RIM | AS REQUIRED |
| 11 | Anchor Rod | NOS | 1 PER POST |
(H) Tear Blade profile
Tear Blade Thickness Minimum Thickness of 0.5mm
E F
Blade Length Minimum 22mm
Material Hot Dipped GI (min 275 gsm)
|
|

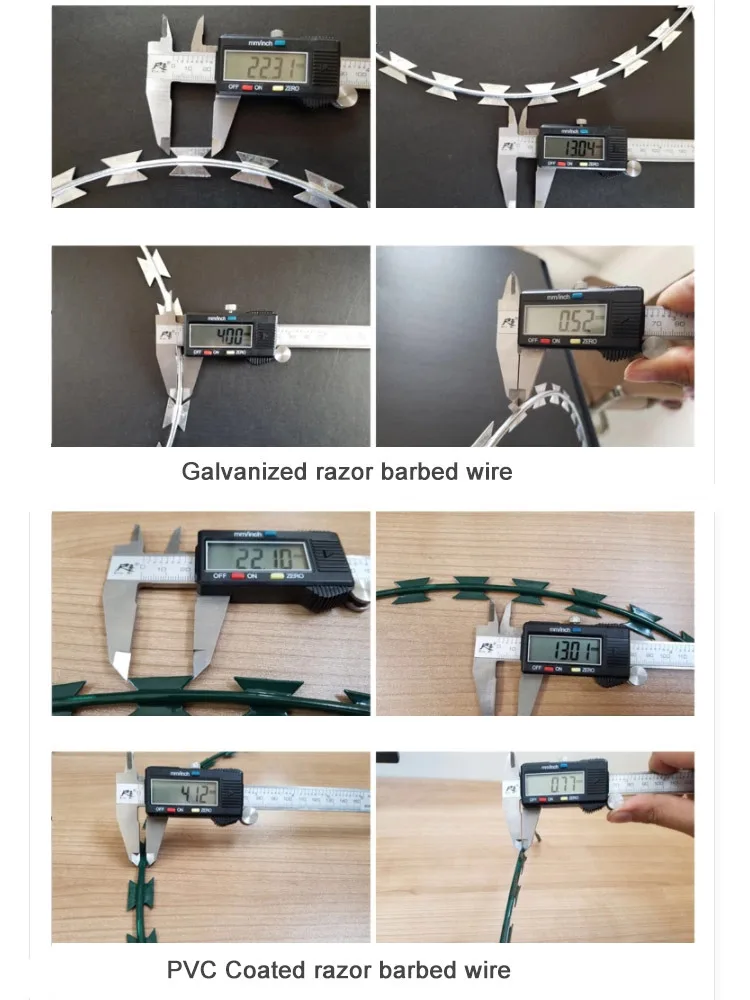

Weld Razor Wire Mesh BTO22 75mmx150mm Images
|
